NanoZoomer® S540MD Slide scanner system
C17400-21MDEU
The NanoZoomer S540MD for EU is the high-throughput, IVDR, UK MDR2002 and IvDO compliant model, ideal for use in hospitals and clinical laboratories.
The system allows to make whole slide imaging for in vitro diagnostic use.
NanoZoomer is a registered trademark of Hamamatsu Photonics K.K. (EU, Japan, UK, USA).
The NanoZoomer S540MD by Hamamatsu is engineered with the lab in mind for a seamless workflow.
Featuring compatibility with staining racks, fast slide scanning, exceptional image quality, and an intuitive touchscreen interface, this high-capacity scanner is built to handle the needs of the clinical pathology laboratory.
*Maximum capacity: 540 slides with a rack for 30 slides and 360 slides with a rack for 20 slides.
Features

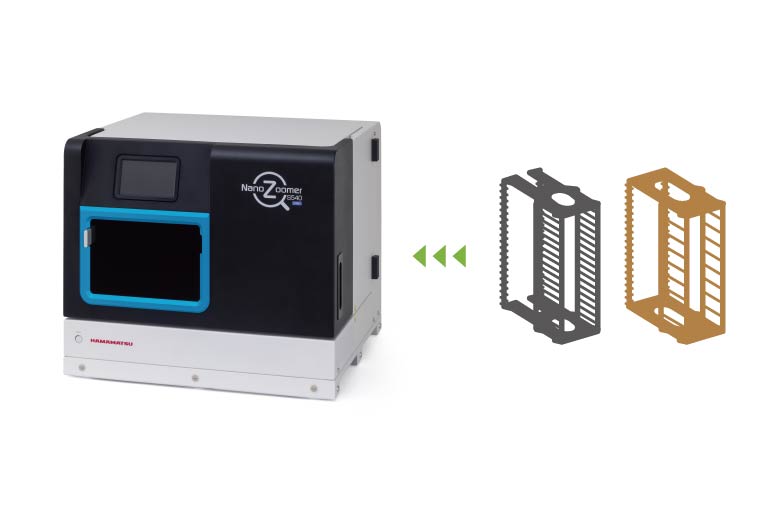

The NanoZoomer S540MD can handle both rack for 30 slides and 20 slides simultaneously. Based on user needs, there is flexibility to select configurations with the rack for 30 slides or 20 slides to 18 slots at the factory.

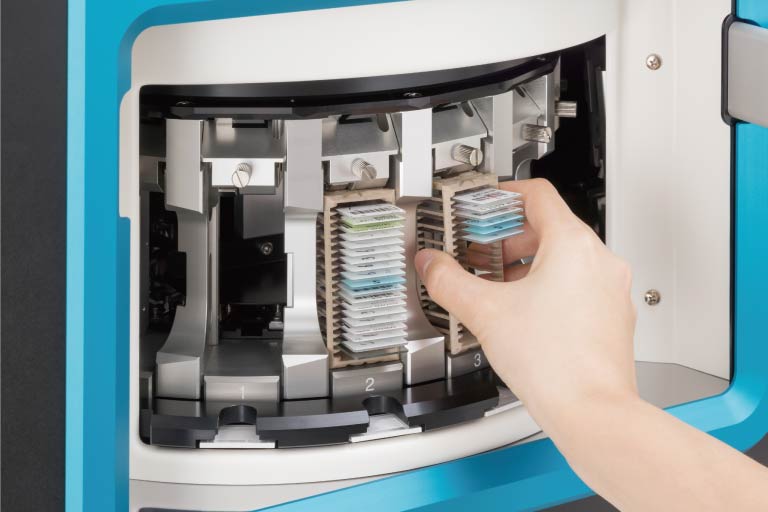

Continuous Loading
Insert and exchange racks without interrupting scanning. Rack priority can be set either directly in the touchscreen interface or using the operation software (NZAcquireMD or NZConnectMD Scan*).

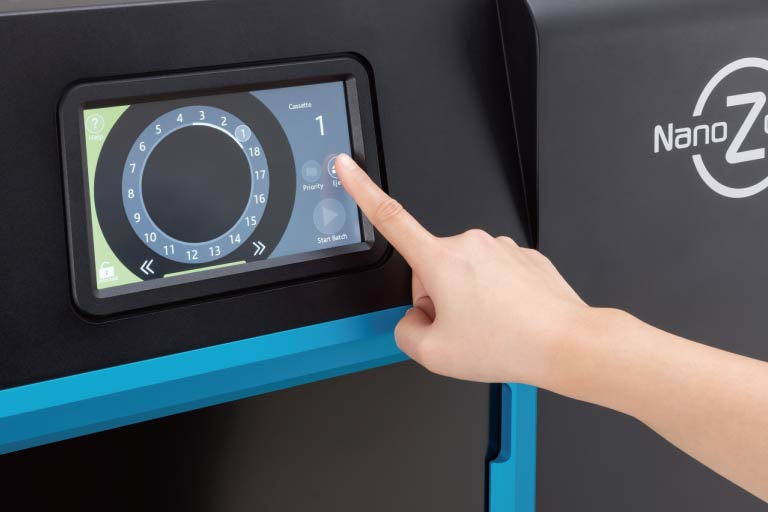

Touch Screen Interface

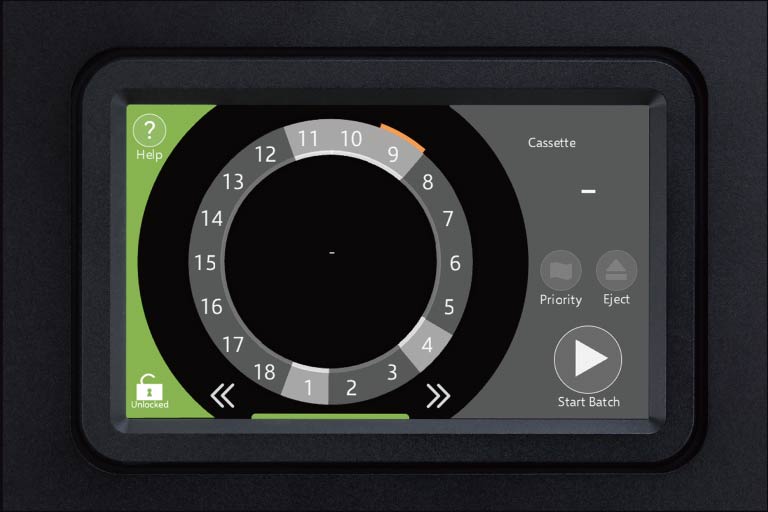

The touch screen allows users to operate and monitor key scanning functions without accessing the operation software, including:
- Start/Stop Scanning and Remove Racks
- Set Scan Priority for Racks

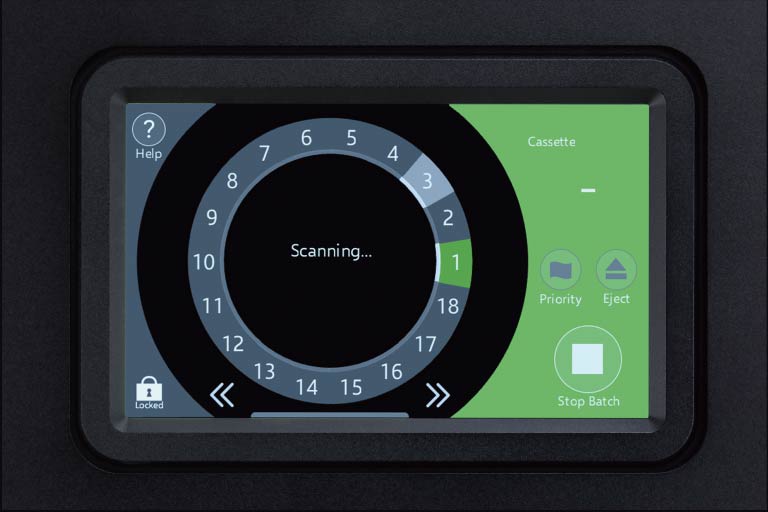

- Display Scan Status
Start/Stop Scanning and Remove Racks
Set Scan Priority for Racks
Display Scan Status
Specifications
| Product name | NanoZoomer S540MD Slide scanner system | |
|---|---|---|
| Product number | C17400-21MDEU | |
| Scanning speed*1 (20× mode/40× mode) | Approx. 30 s/slide | |
| Throughput*1 (20× mode/40× mode) | More than 82 slides/h | |
| Objective lens | 20× NA 0.75 User can select 20× or 40× mode at start of scanning |
|
| Compatible glass slides | 25.0 mm to 26.0 mm × 75.0 mm to 76.0 mm (Thickness 0.9 mm to 1.2 mm) | |
| Slide loader | Rack for 20 slides | Max. 360 slides (20 slides × 18 cassettes) |
| Rack for 30 slides*2 | Max. 540 slides (30 slides × 18 cassettes) | |
| Scanning resolution | 20× mode | Approx. 0.46 μm/pixel |
| 40× mode | Approx. 0.23 μm/pixel | |
| Focusing method | Pre-Focus map | |
| Z-stack feature | Included | |
| Image compression | JPEG compression | |
| Readable barcodes | 1D Barcodes | Code 39, Code 128, Interleaved 2 of 5, Codabar, EAN-8 and UPC-E |
| 2D Barcodes | DataMatrix (ECC200) QR code® (QR Code Model-2) |
|
| Power supply | AC 100 V to AC 240 V | |
| Power consumption (Scanner only) | Approx. 200 VA | |
*1 When scanning, it scans an area of 15 mm × 15 mm square with 5 focus points.
*2 This configuration is provided with the rack for 20 slides.

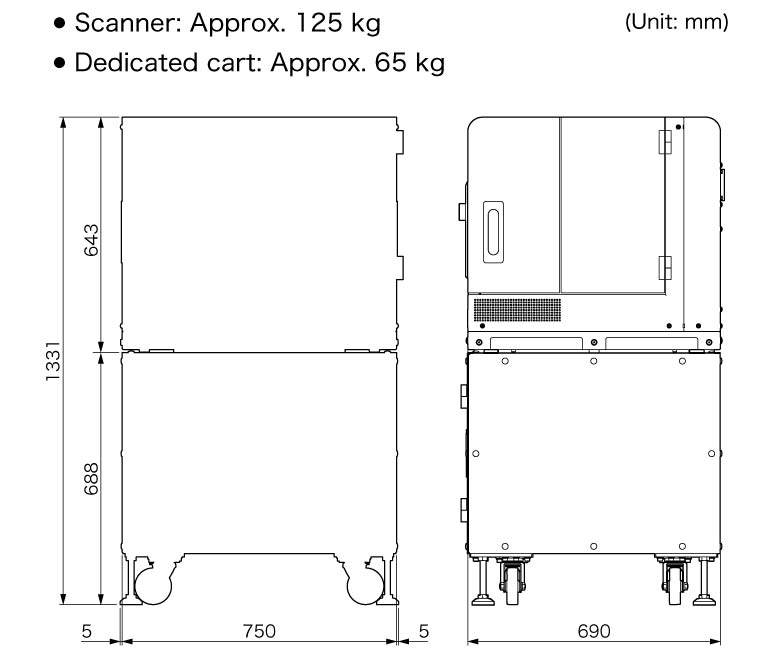

Dimensions
Important Notice
The matrix shows the NanoZoomer IVD series offered by region. The NanoZoomer IVD series is registered as a medical device in accordance with legal requirements.
| USA | EU/EEA | UK | Swizerland | China | Canada | Taiwan | Republic of Korea | Japan | Türkiye | Israel | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NanoZoomer S20MD | C16300-21MDEU | C16300-21MDEU | C16300-21MDEU | C16300-31MDCA | C16300-11MDK | C16300-11MDJ | C16300-21MDEU | ||||
| NanoZoomer S60v2MD | C16600-21MDEU | C16600-21MDEU | C16600-21MDEU | C16600-21MDEU | C16600-21MDEU | ||||||
| NanoZoomer S360MD | C13220-01MD | C13220-21MDEU | C13220-21MDEU | C13220-21MDEU | C13220-61MDK | C13220-11MDJ | C13220-21MDEU | C13220-21MDEU | |||
| NanoZoomer S540MD | C17400-21MDEU | C17400-21MDEU | C17400-21MDEU | C17400-21MDEU | C17400-21MDEU | ||||||
| NanoZoomer S60 | C13210-01 | ||||||||||
| NanoZoomer S360 | C13220-01 | C13220-31 | C13220-01 | ||||||||
| NanoZoomer S210 | C13239-01 | ||||||||||
| NanoZoomer-SQ | C13140-01 |
Important Notice
In the USA, the C13220-01MD NanoZoomer S360MD Slide scanner system can be used for primary diagnosis in the following validated FDA-cleared displays:
・JVC JD-C240BN01A *The display is FDA cleared for use with the NanoZoomer S360MD.
・BARCO MDPC-8127 *The display itself is FDA cleared.
In Europe, the following products are regulatory compliant for IVDR (EU), UK MDR2002 (UK) and IvDO (CH) for in vitro diagnostic use:
C13220-21MDEU NanoZoomer S360MD Slide scanner system, C16600-21MDEU NanoZoomer S60v2MD Slide scanner system, C16300-21MDEU NanoZoomer S20MD Slide scanner system and C17400-21MDEU NanoZoomer S540MD Slide scanner system.
In China, the following products are registered for in vitro diagnostic use:
C13220-01 NanoZoomer S360, C13239-01 NanoZoomer S210, C13210-01 NanoZoomer S60 and C13140-01 NanoZoomer-SQ.
In Canada, C13220-31 NanoZoomer S360 and C16300-31MDCA NanoZoomer S20MD Slide scanner system have Medical Device License.
In Taiwan, C13220-01 NanoZoomer S360 is registered as medical device.
In Korea, C13220-61MDK NanoZoomer S360MD Slide scanner system and C16300-61MDK NanoZoomer S20MD Slide scanner system are registered as in vitro diagnostic medical device.
In Japan, C13220-11MDJ NanoZoomer S360MD Slide scanner system and C16300-11MDJ NanoZoomer S20MD Slide scanner system are approved as medical devices.
In Türkiye, C13220-21MDEU NanoZoomer S360MD Slide scanner system, C16600-21MDEU NanoZoomer S60v2MD Slide scanner system and C16300-21MDEU NanoZoomer S20MD Slide scanner system are registered as medical devices.
In Israel, C13220-21MDEU NanoZoomer S360MD Slide scanner system and C16600-21MDEU NanoZoomer S60v2MD Slide scanner system are registered as medical devices.
For other countries, the NanoZoomer series are for research use only and not permitted to use for clinical diagnostic purpose.
