NanoZoomer® S360MD Slide scanner system
C13220-21MDEU
The NanoZoomer S360MD for EU is the high-throughput, IVDR(EU), UK MDR2002(UK) and IvDO(CH) compliant model, ideal for use in hospitals and clinical laboratories.
The system allows to make whole slide imaging for in vitro diagnostic use.
NanoZoomer is a registered trademark of Hamamatsu Photonics K.K. (EU, Japan, UK, USA).
Features
High-throughput and high-capacity scanning
Optimize slide loading, scan speed and data transfer to maximize scanning efficiencies.
Scan speed delivers a throughput of 82 slides/h in 20× and 40× mode.
* When it scans an area of 15 mm × 15 mm square with 5 focus points.
12 cassettes with 30 slides per cassettes.
Maintain an optimized system condition
Optimum image quality and color balance are maintained by the operational software “NZAcquireMD”.
Improved scanning workflow solutions
Can choose a scanning mode as you like.
Fully-Automatic scanning
All scanning processes work automatically.
Semi-Automatic scanning
Set-up scanning conditions such as the scan area, focus point placement, Z-stacking, and resolution and to assign
bespoke profiles to each slide or rack.
More productive and convenient
Scan status
Scan status bar displaying the status for each cassette as “Waiting for scan”, “Scanning” and “Scan completed”.
Specifications
| Product name | NanoZoomerⓇ S360MD Slide scanner system | |
|---|---|---|
| Product number | C13220-21MDEU | |
| Scanning speed *1 | 20× mode | Approx. 30 s |
| 40× mode | Approx. 30 s | |
| Throughput *1 | 20× mode | More than 82 slides/h |
| 40× mode | More than 82 slides/h | |
| Objective lens | 20× NA 0.75 User can select 20× or 40× mode at start of scanning |
|
| Compatible glass slides | 25.0 mm to 26.0 mm × 75.0 mm to 76.0 mm |
|
| Slide loader | 360 slides (30 slides × 12 cassettes) | |
| Scanning resolution | 20× mode | Approx. 0.46 μm/pixel |
| 40× mode | Approx. 0.23 μm/pixel | |
| Focusing method | Pre-focus map | |
| Z-stack feature | Included | |
| Image compression | JPEG compression | |
| Readable barcodes | 1D Barcodes | Code 39, Code 128, Interleaved 2 of 5, Codabar, EAN-8 and UPC-E |
| 2D Barcodes | DataMatrix (ECC200) QR CodeⓇ (QR Code Model-2) |
|
| Power supply | AC 100 V to AC 240 V | |
| Power consumption (Scanner only) | Approx. 200 VA | |
*1 When it scans an area of 15 mm × 15 mm square with 5 focus points.

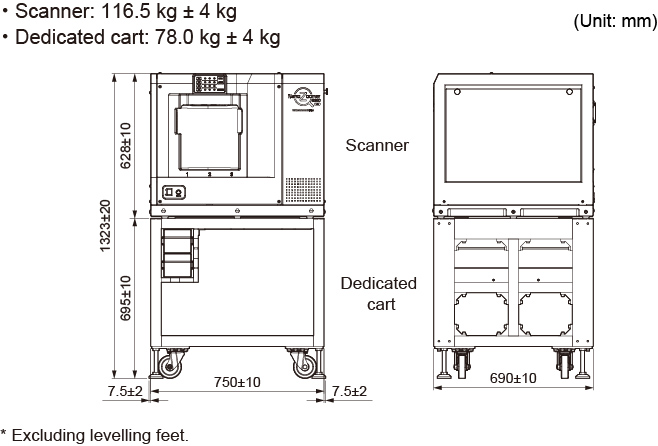

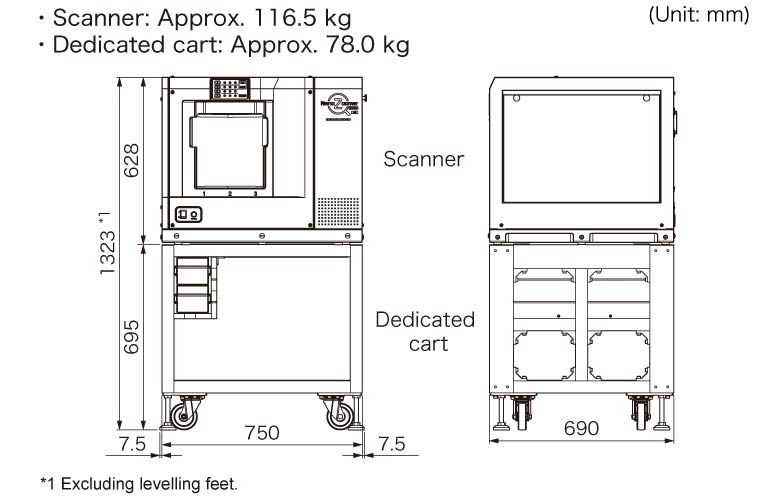

Dimensions
Important Notice
The matrix shows the NanoZoomer IVD series offered by region. The NanoZoomer IVD series is registered as a medical device in accordance with legal requirements.
| USA | EU/EEA | UK | Switzerland | China | Canada | Taiwan | Republic of Korea | Japan | Türkiye | Israel | India | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NanoZoomer S20MD | C16300-21MDEU | C16300-21MDEU | C16300-21MDEU | C16300-31MDCA | C16300-11MDK | C16300-11MDJ | C16300-21MDEU | C16300-71MD | ||||
| NanoZoomer S60v2MD | C16600-21MDEU | C16600-21MDEU | C16600-21MDEU | C16600-21MDEU | C16600-21MDEU | |||||||
| NanoZoomer S360MD | C13220-01MD | C13220-21MDEU | C13220-21MDEU | C13220-21MDEU | C13220-61MDK | C13220-11MDJ | C13220-21MDEU | C13220-21MDEU | C13220-71MD | |||
| NanoZoomer S540MD | C17400-21MDEU | C17400-21MDEU | C17400-21MDEU | C17400-00MD | C17400-21MDEU | C17400-21MDEU | ||||||
| NanoZoomer S60 | C13210-01 | |||||||||||
| NanoZoomer S360 | C13220-01 | C13220-31 | C13220-01 |
Important Notice
In the USA, the NanoZoomer S360MD Slide scanner system(C13220-01MD) can be used for primary diagnosis in the following validated FDA-cleared displays:
・JVC JD-C240BN01A *The display is FDA cleared for use with the NanoZoomer S360MD.
・BARCO MDPC-8127 *The display itself is FDA cleared.
In Europe, the following products are regulatory compliant for IVDR (EU), UK MDR2002 (UK) and IvDO (CH) for in vitro diagnostic use:
NanoZoomer S360MD Slide scanner system(C13220-21MDEU), NanoZoomer S60v2MD Slide scanner system(C16600-21MDEU), NanoZoomer S20MD Slide scanner system(C16300-21MDEU) and NanoZoomer S540MD Slide scanner system(C17400-21MDEU).
In China, the following products are registered for in vitro diagnostic use:
NanoZoomer S360 Digital slide scanner(C13220-01) and NanoZoomer S60 Digital slide scanner(C13210-01).
In Canada, NanoZoomer S360 Digital slide scanner(C13220-31), NanoZoomer S540MD Slide scanner system(C17400-00MD) and NanoZoomer S20MD Slide scanner system(C16300-31MDCA) have Medical Device License.
In Taiwan, NanoZoomer S360 Digital slide scanner(C13220-01) is registered as medical device.
In Korea, NanoZoomer S360MD Slide scanner system(C13220-61MDK) and NanoZoomer S20MD Slide scanner system(C16300-61MDK) are registered as in vitro diagnostic medical device.
In Japan, NanoZoomer S360MD Slide scanner system(C13220-11MDJ) and NanoZoomer S20MD Slide scanner system(C16300-11MDJ) are approved as medical devices.
In Türkiye, NanoZoomer S360MD Slide scanner system(C13220-21MDEU), NanoZoomer S60v2MD Slide scanner system(C16600-21MDEU) and NanoZoomer S20MD Slide scanner system(C16300-21MDEU) are registered as medical devices.
In Israel, NanoZoomer S360MD Slide scanner system(C13220-21MDEU) and NanoZoomer S60v2MD Slide scanner system(C16600-21MDEU) are registered as medical devices.
In India, NanoZoomer S360MD Slide scanner system(C13220-71MD) and NanoZoomer S20MD Slide scanner system(C16300-71MD) have Medical Device License.
For other countries, the NanoZoomer series are for research use only and not permitted to use for clinical diagnostic purpose.
