NanoZoomer® S20MD Slide scanner system
C16300-21MDEU
The NanoZoomer S20MD for EU is the IVDR, UKCA and IvDO compliant model ideal for use in hospitals and clinical laboratories.
The system allows to make whole slide imaging for in vitro diagnostic use.
This compact scanner fits on a lab bench and is a scalable solution.
NanoZoomer is a registered trademark of Hamamatsu Photonics K.K. (EU, Japan, UK, USA).
Features
High-speed Scanning
Delivers a fast scanning speed.
Rapid Throughput
New slide handling mechanics allows for rapid handling of slides.

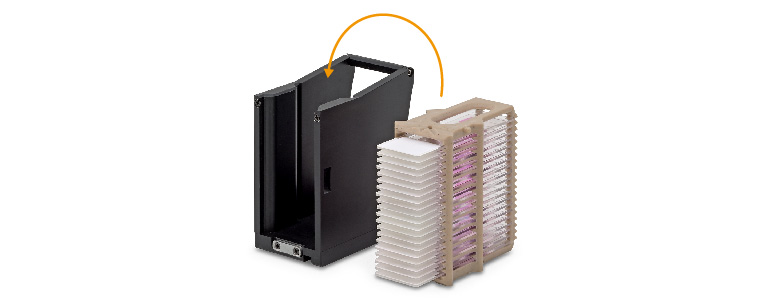

Flexible Slide Rack
Load directly from Sakura 4768 20-slide basket* and coverslipper for a lean scanner workflow process.
*Sakura 4768 20-slide basket is an option.
Compact and Scalable
Our compact scanner fits on a lab bench and is a scalable solution, as you can add more scanners as digitization needs increase.
Combine the NanoZoomer MD product portfolio to meet awide range of scanning needs, from mega slides to high capacity scanning.
Product movie
Specifications
| Product name | NanoZoomerⓇ S20MD Slide scanner system |
|---|---|
| Product number | C16300-21MDEU |
| Scanning speed* : (20× / 40× mode) | Approx. 30 s |
| Objective lens | 20× NA 0.75 User can select 20× or 40× mode at start of scanning. |
| Compatible glass slides | 25.0 mm to 26.0 mm × 75.0 mm to 76.0 mm (Thickness 0.9 mm to 1.2 mm) |
| Slide loader (Standard-sized slide) | Up to 20 slides |
| Scanning resolution: 20× mode | Approx. 0.46 μm/pixel |
| Scanning resolution: 40× mode | Approx. 0.23 μm/pixel |
| Focusing method | Pre-focus map |
| Z-stack feature | Included |
| Image compression | JPEG compression |
| Readable barcodes: 1D Barcodes | Code 39, Code 128, Interleaved 2 of 5, Codabar, EAN-8 and UPC-E |
| Readable barcodes: 2D Barcodes | DataMatrix (ECC200) QR code (QR Code Model-1, QR Code Model-2) |
| Power supply | AC 100 V to AC 240 V |
| Power consumption (Scanner only) | Approx. 150 VA |

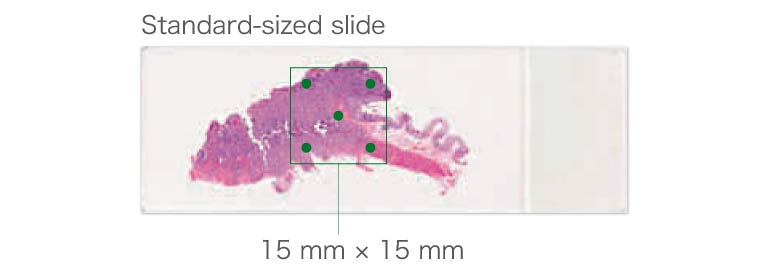

*When it scans an area of 15 mm × 15 mm square with 5 focus points.
Dimensions
Important Notice
The matrix shows the NanoZoomer IVD series offered by region. The NanoZoomer IVD series is registered as a medical device in accordance with legal requirements.
| USA | EU/EEA | UK | Swizerland | China | Canada | Taiwan | Republic of Korea | Japan | Turkey | Israel | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NanoZoomer S20MD | C16300-21MDEU | C16300-21MDEU | C16300-21MDEU | C16300-31MDCA | C16300-11MDJ | C16300-21MDEU | |||||
| NanoZoomer S60v2MD | C16600-21MDEU | C16600-21MDEU | C16600-21MDEU | C16600-21MDEU | C16600-21MDEU | ||||||
| NanoZoomer S360MD | C13220-01MD | C13220-21MDEU | C13220-21MDEU | C13220-21MDEU | C13220-61MDK | C13220-11MDJ | C13220-21MDEU | C13220-21MDEU | |||
| NanoZoomer S60 | C13210-01 | ||||||||||
| NanoZoomer S360 | C13220-01 | C13220-31 | C13220-01 | ||||||||
| NanoZoomer S210 | C13239-01 | ||||||||||
| NanoZoomer-SQ |
Important Notice
In the USA, the C13220-01MD NanoZoomer S360MD Slide scanner system can be used for primary diagnosis in the following validated FDA-cleared displays:
・JVC JD-C240BN01A *The display is FDA cleared for use with the NanoZoomer S360MD.
・BARCO MDPC-8127 *The display itself is FDA cleared.
In Europe, the following products are regulatory compliant for IVDR (EU), UKCA (UK) and IvDO (CH) for in vitro diagnostic use:
C13220-21MDEU NanoZoomer S360MD Slide scanner system, C16600-21MDEU NanoZoomer S60v2MD Slide scanner system and C16300-21MDEU NanoZoomer S20MD Slide scanner system.
In China, the following products are registered for in vitro diagnostic use:
C13220-01 NanoZoomer S360, C13239-01 NanoZoomer S210, C13210-01 NanoZoomer S60 and C13140-01 NanoZoomer-SQ.
In Canada, C13220-31 NanoZoomer S360 and C16300-31MDCA NanoZoomer S20MD Slide scanner system have Medical Device License.
In Taiwan, C13220-01 NanoZoomer S360 is registered as medical device.
In Korea, C13220-61MDK NanoZoomer S360MD Slide scanner system is registered as in vitro diagnostic medical device.
In Japan, C13220-11MDJ NanoZoomer S360MD Slide scanner system and C16300-11MDJ NanoZoomer S20MD Slide scanner system are approved as medical devices.
In Turkey, C13220-21MDEU NanoZoomer S360MD Slide scanner system, C16600-21MDEU NanoZoomer S60v2MD Slide scanner system and C16300-21MDEU NanoZoomer S20MD Slide scanner system are registered as medical devices.
In Israel, C13220-21MDEU NanoZoomer S360MD Slide scanner system and C16600-21MDEU NanoZoomer S60v2MD Slide scanner system are registered as medical devices.
For other countries, the NanoZoomer series are for research use only and not permitted to use for clinical diagnostic purpose.
