NZConnectMD Scan Image acquisition server software
U16414-21MDEU

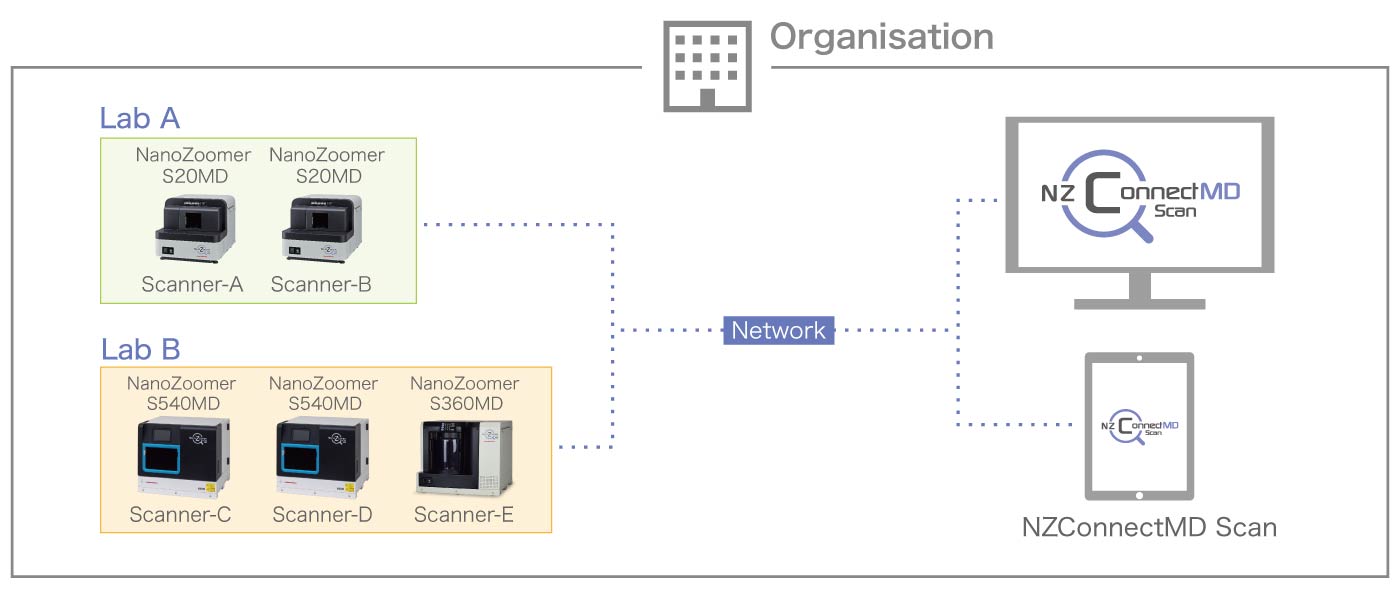

Web-based scanner management software that allows any authorized user on the network to seamlessly manage and operate multiple S540MDs, S360MDs and S20MDs of the NanoZoomer MD series.
Optimizing Digital Pathology Workflow with Centralised Scanner Management
The NZConnectMD Serve offers network distribution of whole slide image (WSI) scanned by all NanoZoomer MD series scanners.
It facilitates web-based sharing of WSI through networks and provides integration with 3rd party systems.
Features
Space Optimization

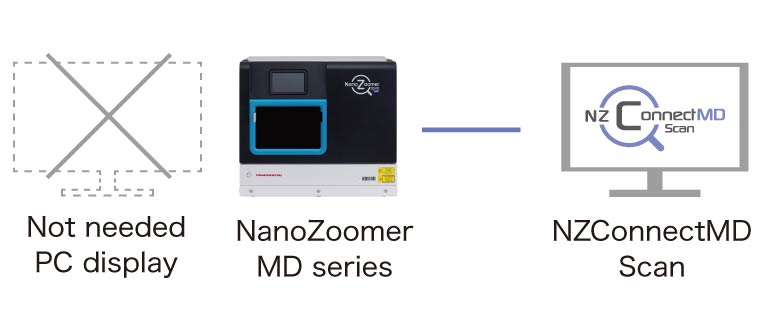

Save space in the lab by performing scan setup, status checks, and QC in one web-based application for all of your scanners.
Barcode Driven Workflow
■ Automatically select scan profiles based on slide barcode.
■ Freely move slides between scanners without re-registering.
■ Flexibly route slide images to any network destination.
Auto/Manual Remote Scanning
■ Freely mix slides for scanning in semi-automatic and fully-automatic modes.
■ Maintain control of scan settings in automated workflows, with the ability to adjust pre-applied settings.
Quality Check Management
■ Easily locate slides by scanning their barcode with a hand-held reader.
■ Use automated QC to check slides needing attention, with customizable focus score thresholds.
■ Use area check function to confirm scan areas on multiple slides at once.
Audit Trail
Enhanced transparency of scanner activity, ensuring a clear record of key workflow steps. Track which slides were scanned, who performed QC checks, and when slides were accessed - all linked to secure user logins. Customizable filters allow tailored views of specific actions within set timeframes, with export options available to support IT security and governance.
Specifications
System configuration
| Product name | NZConnectMD Scan Image acquisiton server software |
|---|---|
| Product number | U16414-21MDEU |
| Type of computer | PC-AT compatibles |
| OS | Windows® Server 2022, Windows Server 2019, Windows Server 2016 |
| CPU | Xeon 2.8 GHz or more |
| Memory | 16 GB or more |
| Available HDD space | 50 GB or more |
| Drive | DVD-ROM Drive |
| Screen resolution | 1024 × 768 or higher |
| Database management system | Microsoft SQL Server 2016 Express with Advanced Services / Standard (64bit) Microsoft SQL Server 2017 Express with Advanced Services / Standard (64bit) Microsoft SQL Server 2019 Express with Advanced Services / Standard (64bit) Microsoft SQL Server 2022 Express with Advanced Services / Standard (64bit) |
Operating environment
| Compatible devices | Compatible OS | Supported browser |
|---|---|---|
| Windows PC | Windows 10 Including Touch panel | Microsoft Edge, Google Chrome, Mozilla Firefox |
| Windows 11 | ||
| Windows server 2022 | ||
| Windows server 2019 | ||
| Mac | Up to macOS Ver. 15 Sequoia | |
| iPad | Up to iPadOS Ver.18 | Up to Safari Ver. 18 |
