NanoZoomer S20MD Slide scanner system
C16300-01MD
NanoZoomer S20MD Slide scanner system provides compact and high-speed scanning for digital pathology.
This system is intended for in vitro diagnostic use as an aid to the pathologist to review and interpret digital images of surgical pathology slides prepared from formalin-fixed paraffin-embedded ("FFPE") tissue.
NanoZoomer is a registered trademark of Hamamatsu Photonics K.K. (EU, Japan, UK, USA).
Features
High-speed scanning
Delivers a fast scanning speed.

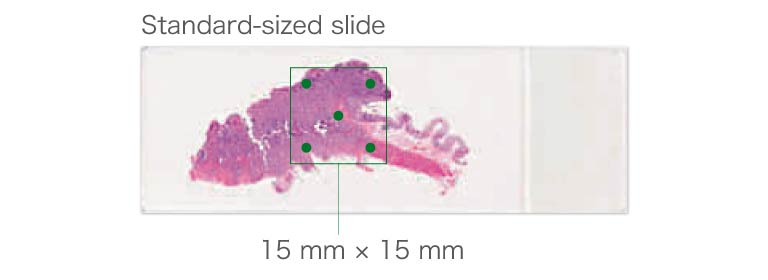

* When it scans an area of 15 mm x 15 mm square with 5 focus points.
High throughput
New slide handling mechanics allows for rapid handling of slides.
* When it scans an area of 15 mm x 15 mm square with 5 focus points.

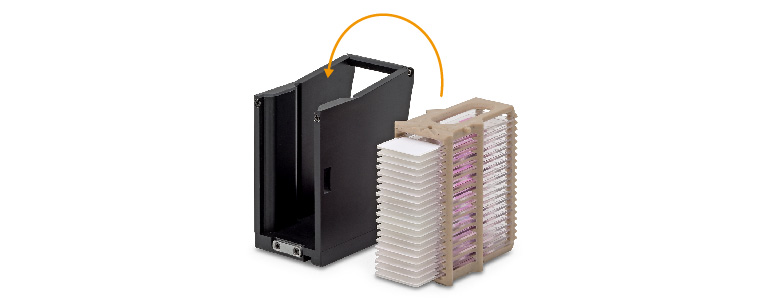

Slide rack compatibility
Load directly from Sakura 4768 20-slide basket* and coverslipper for a lean scanner workflow process.
*Sakura 4768 20-slide basket is an option.
Compact and scalable
Our compact scanner fits on a lab bench and is a scalable solution, as you can add more scanners as digitization needs increase.
Combine the NanoZoomer MD product portfolio to meet a wide range of scanning needs, from STAT slides to high capacity scanning.
High-quality images
Our scanner produces high-quality images using the 40× and 20× modes. The NanoZoomer MD range has an equivalent pixel pathway and color reproducibility.
This provides confidence and consistency in producing images for use in primary diagnostics and image analysis.
Product movie
Specifications
| Product name | NanoZoomerⓇ S20MD Slide scanner system | |
|---|---|---|
| Product number | C16300-01MD | |
| Scanning speed* (20× / 40× mode) | Approx. 30 s | |
| Objective lens | 20× N.A. 0.75 User can select 20× or 40× mode at start of scanning |
|
| Compatible glass slides | 25.0 mm to 26.0 mm × 75.0 mm to 76.0 mm (Thickness 0.9 mm to 1.2 mm) | |
| Slide loader (Standard-sized slide) | Up to 20 slides | |
| Scanning resolution | 20× mode | Approx. 0.46 μm/pixel |
| 40× mode | Approx. 0.23 μm/pixel | |
| Focusing method | Pre-Focus map | |
| Z-stack feature | Included | |
| Image compression | JPEG compression | |
| Readable barcodes | 1D Barcodes | Code 39, Code 128, Interleaved 2 of 5, Codabar, EAN-8 and UPC-E |
| 2D Barcodes | DataMatrix (ECC200) | |
| Power supply | AC 100 V to AC 240 V | |
| Power consumption (Scanner only) | 150 VA | |
*When it scans an area of 15 mm × 15 mm square with 5 focus points.

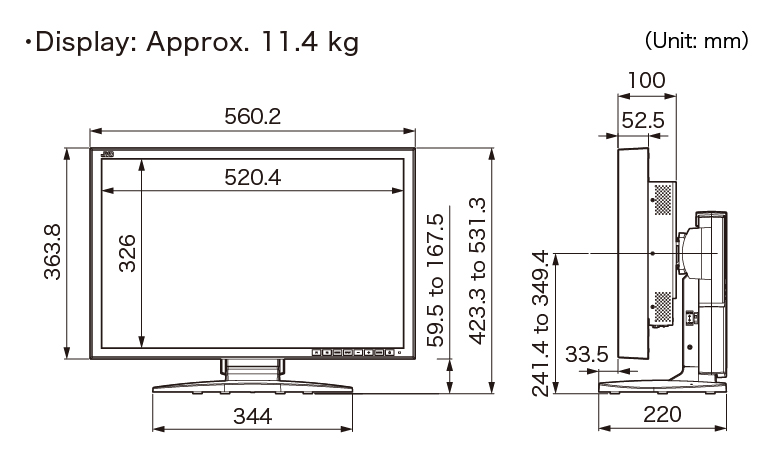

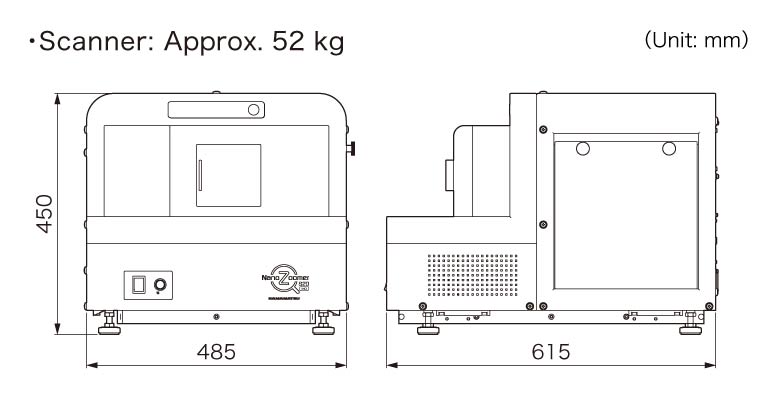

Dimensions
Important Notice
The matrix shows the NanoZoomer IVD series offered by region. The NanoZoomer IVD series is registered as a medical device in accordance with legal requirements.
| USA | EU/EEA | UK | Switzerland | China | Canada | Taiwan | Republic of Korea | Japan | Türkiye | Israel | India | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NanoZoomer S20MD | C16300-01MD | C16300-21MDEU | C16300-21MDEU | C16300-21MDEU | C16300-31MDCA | C16300-61MDK | C16300-11MDJ | C16300-21MDEU | C16300-71MD | |||
| NanoZoomer S60v2MD | C16600-21MDEU | C16600-21MDEU | C16600-21MDEU | C16600-21MDEU | C16600-21MDEU | |||||||
| NanoZoomer S360MD | C13220-01MD | C13220-21MDEU | C13220-21MDEU | C13220-21MDEU | C13220-61MDK | C13220-11MDJ | C13220-21MDEU | C13220-21MDEU | C13220-71MD | |||
| NanoZoomer S540MD | C17400-01MD | C17400-21MDEU | C17400-21MDEU | C17400-21MDEU | C17400-00MD | C17400-21MDEU | C17400-21MDEU | |||||
| NanoZoomer S60 | C13210-01 | |||||||||||
| NanoZoomer S360 | C13220-01 | C13220-31 | C13220-01 |
Important Notice
In the USA, the NanoZoomer S540MD Slide scanner system(C17400-01MD), NanoZoomer S360MD Slide scanner system(C13220-01MD) and NanoZoomer S20MD Slide scanner system(C16300-01MD) can be used for primary diagnosis in the following validated FDA-cleared displays:
・JVC JD-C240BN01A *The display is FDA cleared for use with the NanoZoomer S360MD.
・BARCO MDPC-8127 *The display itself is FDA cleared.
In Europe, the following products are regulatory compliant for IVDR (EU), UK MDR2002 (UK) and IvDO (CH) for in vitro diagnostic use:
NanoZoomer S360MD Slide scanner system(C13220-21MDEU), NanoZoomer S60v2MD Slide scanner system(C16600-21MDEU), NanoZoomer S20MD Slide scanner system(C16300-21MDEU) and NanoZoomer S540MD Slide scanner system(C17400-21MDEU).
In China, the following products are registered for in vitro diagnostic use:
NanoZoomer S360 Digital slide scanner(C13220-01) and NanoZoomer S60 Digital slide scanner(C13210-01).
In Canada, NanoZoomer S360 Digital slide scanner(C13220-31), NanoZoomer S540MD Slide scanner system(C17400-00MD) and NanoZoomer S20MD Slide scanner system(C16300-31MDCA) have Medical Device License.
In Taiwan, NanoZoomer S360 Digital slide scanner(C13220-01) is registered as medical device.
In Korea, NanoZoomer S360MD Slide scanner system(C13220-61MDK) and NanoZoomer S20MD Slide scanner system(C16300-61MDK) are registered as in vitro diagnostic medical device.
In Japan, NanoZoomer S360MD Slide scanner system(C13220-11MDJ) and NanoZoomer S20MD Slide scanner system(C16300-11MDJ) are approved as medical devices.
In Türkiye, NanoZoomer S360MD Slide scanner system(C13220-21MDEU), NanoZoomer S60v2MD Slide scanner system(C16600-21MDEU) and NanoZoomer S20MD Slide scanner system(C16300-21MDEU) are registered as medical devices.
In Israel, NanoZoomer S360MD Slide scanner system(C13220-21MDEU) and NanoZoomer S60v2MD Slide scanner system(C16600-21MDEU) are registered as medical devices.
In India, NanoZoomer S360MD Slide scanner system(C13220-71MD) and NanoZoomer S20MD Slide scanner system(C16300-71MD) have Medical Device License.
For other countries, the NanoZoomer series are for research use only and not permitted to use for clinical diagnostic purpose.
