NanoZoomer® S360MD Slide scanner system
C13220-21MDEU
The NanoZoomer S360MD for EU is the high-throughput, IVDR(EU), UK MDR2002(UK) and IvDO(CH) compliant model, ideal for use in hospitals and clinical laboratories.
The system allows to make whole slide imaging for in vitro diagnostic use.
NanoZoomer is a registered trademark of Hamamatsu Photonics K.K. (EU, Japan, UK, USA).
Features
- Scanning speed 20× mode (15 mm × 15 mm): approx. 30 s
- Scanning speed 40× mode (15 mm × 15 mm): approx. 30 s
- Max. 360 slides
Specifications
| Product name | NanoZoomerⓇ S360MD Slide scanner system | |
|---|---|---|
| Product number | C13220-21MDEU | |
| Scanning speed *1 | 20× mode | Approx. 30 s |
| 40× mode | Approx. 30 s | |
| Throughput *1 | 20× mode | More than 82 slides/h |
| 40× mode | More than 82 slides/h | |
| Objective lens | 20× NA 0.75 User can select 20× or 40× mode at start of scanning |
|
| Compatible glass slides | 25.0 mm to 26.0 mm × 75.0 mm to 76.0 mm |
|
| Slide loader | 360 slides (30 slides × 12 cassettes) | |
| Scanning resolution | 20× mode | Approx. 0.46 μm/pixel |
| 40× mode | Approx. 0.23 μm/pixel | |
| Focusing method | Pre-focus map | |
| Z-stack feature | Included | |
| Image compression | JPEG compression | |
| Readable barcodes | 1D Barcodes | Code 39, Code 128, Interleaved 2 of 5, Codabar, EAN-8 and UPC-E |
| 2D Barcodes | DataMatrix (ECC200) QR codeⓇ (QR Code Model-2) |
|
| Power supply | AC 100 V to AC 240 V | |
| Power consumption (Scanner only) | Approx. 200 VA | |
*1 When it scans an area of 15 mm × 15 mm square with 5 focus points.

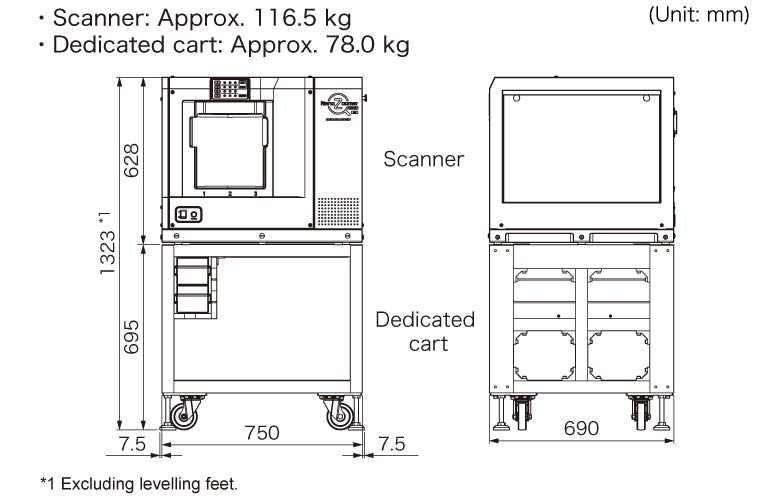

Dimensions
Important Notice
The matrix shows the NanoZoomer IVD series offered by region. The NanoZoomer IVD series is registered as a medical device in accordance with legal requirements.
| USA | EU/EEA | UK | Swizerland | China | Canada | Taiwan | Republic of Korea | Japan | Türkiye | Israel | India | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NanoZoomer S20MD | C16300-21MDEU | C16300-21MDEU | C16300-21MDEU | C16300-31MDCA | C16300-11MDK | C16300-11MDJ | C16300-21MDEU | C16300-71MD | ||||
| NanoZoomer S60v2MD | C16600-21MDEU | C16600-21MDEU | C16600-21MDEU | C16600-21MDEU | C16600-21MDEU | |||||||
| NanoZoomer S360MD | C13220-01MD | C13220-21MDEU | C13220-21MDEU | C13220-21MDEU | C13220-61MDK | C13220-11MDJ | C13220-21MDEU | C13220-21MDEU | C13220-71MD | |||
| NanoZoomer S540MD | C17400-21MDEU | C17400-21MDEU | C17400-21MDEU | C17400-00MD | C17400-21MDEU | C17400-21MDEU | ||||||
| NanoZoomer S60 | C13210-01 | |||||||||||
| NanoZoomer S360 | C13220-01 | C13220-31 | C13220-01 |
Important Notice
In the USA, the NanoZoomer S360MD Slide scanner system(C13220-01MD) can be used for primary diagnosis in the following validated FDA-cleared displays:
・JVC JD-C240BN01A *The display is FDA cleared for use with the NanoZoomer S360MD.
・BARCO MDPC-8127 *The display itself is FDA cleared.
In Europe, the following products are regulatory compliant for IVDR (EU), UK MDR2002 (UK) and IvDO (CH) for in vitro diagnostic use:
NanoZoomer S360MD Slide scanner system(C13220-21MDEU), NanoZoomer S60v2MD Slide scanner system(C16600-21MDEU), NanoZoomer S20MD Slide scanner system(C16300-21MDEU) and NanoZoomer S540MD Slide scanner system(C17400-21MDEU).
In China, the following products are registered for in vitro diagnostic use:
NanoZoomer S360 Digital slide scanner(C13220-01) and NanoZoomer S60 Digital slide scanner(C13210-01).
In Canada, NanoZoomer S360 Digital slide scanner(C13220-31), NanoZoomer S540MD Slide scanner system(C17400-00MD) and NanoZoomer S20MD Slide scanner system(C16300-31MDCA) have Medical Device License.
In Taiwan, NanoZoomer S360 Digital slide scanner(C13220-01) is registered as medical device.
In Korea, NanoZoomer S360MD Slide scanner system(C13220-61MDK) and NanoZoomer S20MD Slide scanner system(C16300-61MDK) are registered as in vitro diagnostic medical device.
In Japan, NanoZoomer S360MD Slide scanner system(C13220-11MDJ) and NanoZoomer S20MD Slide scanner system(C16300-11MDJ) are approved as medical devices.
In Türkiye, NanoZoomer S360MD Slide scanner system(C13220-21MDEU), NanoZoomer S60v2MD Slide scanner system(C16600-21MDEU) and NanoZoomer S20MD Slide scanner system(C16300-21MDEU) are registered as medical devices.
In Israel, NanoZoomer S360MD Slide scanner system(C13220-21MDEU) and NanoZoomer S60v2MD Slide scanner system(C16600-21MDEU) are registered as medical devices.
In India, NanoZoomer S360MD Slide scanner system(C13220-71MD) and NanoZoomer S20MD Slide scanner system(C16300-71MD) have Medical Device License.
For other countries, the NanoZoomer series are for research use only and not permitted to use for clinical diagnostic purpose.
