NDP®.view2 Image viewing software
U12388-01
NDP.view2 provides excellent followability and intuitive operability. You can observe images to the details like a microscope. Additionally,
it supports more than 10 languages, including Japanese, English, Chinese, and more.
NDP is a registered trademark of Hamamatsu Photonics K.K. (EU, Japan, UK, USA).

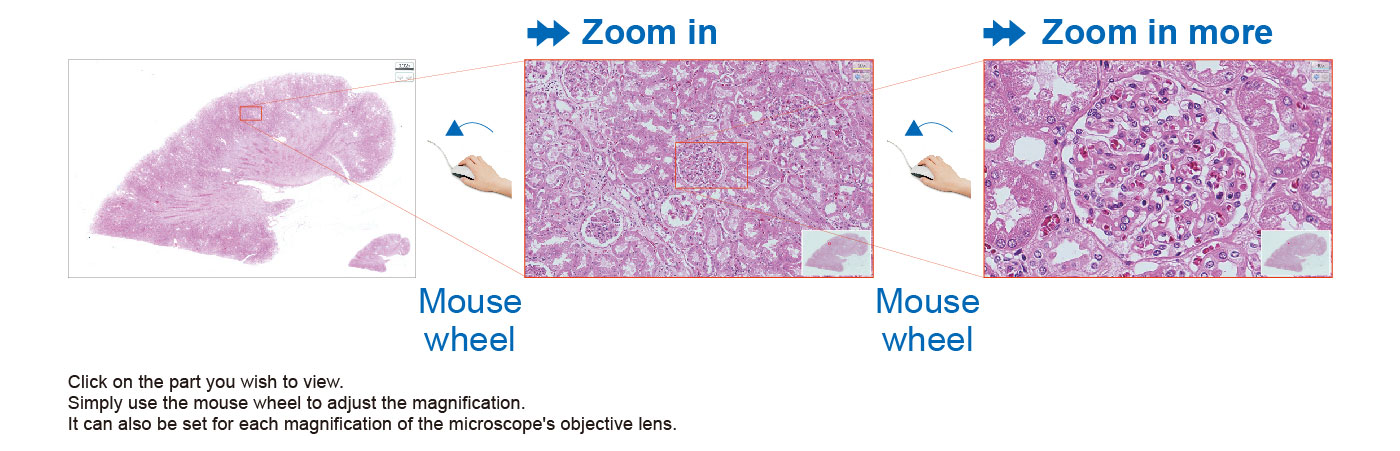

Intuitive operation
Comparable to a map application, allowing you to zoom in and out, and rotate the image.

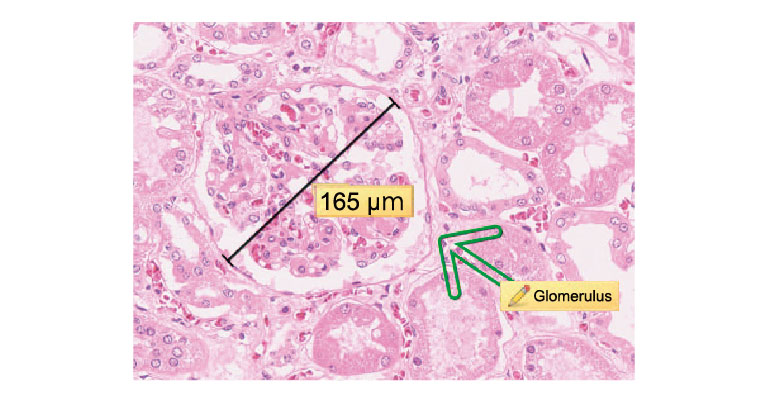

Annotation function
Inserts arrows, drawings, and comments. Also measures the length and surface area of specified point.

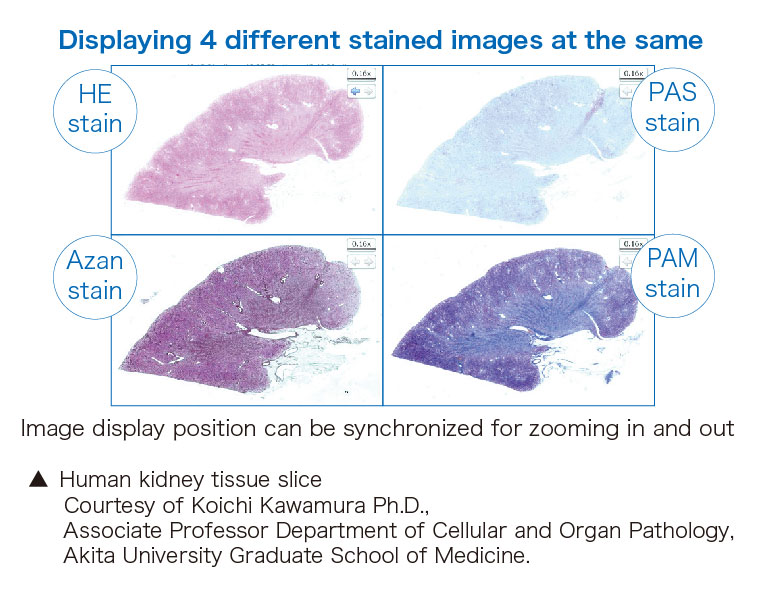

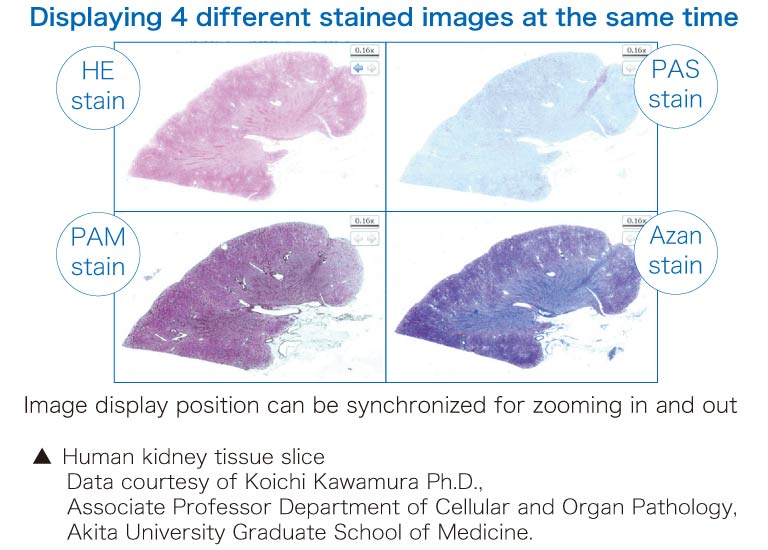

Multiview function
Ability to display multiple images simultaneously opens new possibilities that were previously unavailable with microscopes. This feature allows you to examine the details while maintaining a broader perspective, making it easier to compare different stains in the same viewer. Additionally, the digital slides can be synchronized, to enhance user experience.
Special sites
The Whole Slide Imaging special site is the feature section for whole slide imaging fit to research and pathology.
System requirements
| Windows | Mac OS | |
|---|---|---|
| OS | Windows 8.1, Windows 10 32 bit and 64 bit |
macOS 10.14, 10.15, 11.2 |
| CPU | Core series or faster | Intel multicore processors |
| Memory | 2 GB or more | |
| Available HDD space | 100 MB or more | |
| VGA | Direct X11 or later compatible (Indispensable) | OpenGL 2.0 support |
| Screen resolution | XGA (1024×768) or higher | |
Software and manual download
The NDP.view2 is free to use with Hamamatsu format slides. You can download from the links below.
OS: Windows 8.1, Windows 10, Windows 11 (32 bit and 64 bit)
OS: macOS 10.15, 11.2, 12
When the software is installed, NDP.view2 (U12388-01) will become a default viewer to view Hamamatsu slides. If you would like to keep the NDP.view as a default viewer, please refer to the instruction manual.
The NDP.view2 (U12388-01) is only for research use and is not for In Vitro Diagnostic (IVD). If you need to use NDP.view2 for IVD, please contact Hamamatsu's distributor or sales representative.
Instruction manual [4.6 MB/PDF]
Installation to Mac OS 10.8 or upper [0.3 MB/PDF]
This software may not work satisfactorily on some computers. This software may fail to operate due to the operating system or system requirements. Please read the clause of "System requirements".
- Old version
-
Ver. 2.9.25
OS: Windows 8.1, Windows 10 (32 bit and 64 bit)
OS: macOS 10.14, 10.15, 11.2
Ver. 2.8.24
OS: Windows 8.1, Windows 10 (32 bit and 64 bit)
OS: macOS 10.13 - 10.15
Ver. 2.7.52
OS: Windows 7, Windows 8.1, Windows 10 (32 bit and 64 bit)
OS: macOS 10.13 - 10.15
2020/04/15
We have received reports of an error (Direct3DError) occurring at startup on some PCs running the initial version of Windows 7 and DirectX 11. The error can be resolved by installing the latest Windows update.
If you receive the error and are unable to update Windows then please use the following older version. We apologize for any inconvenience.2018/11/15
We got reports from users that an error (Direct3DError) is shown at startup on specific type of Windows PC. In that case please use the following old version. We apologize for any inconvenience.Ver. 2.6.17
OS: Windows 7, Windows 8.1 (32 bit and 64 bit)
OS: OS X 10.9 - 10.11
Options：NDP.view2 Plus Image viewing software U12388-02
NDP.view2 Plus is designed to maximize the benefits of whole slide viewing with advanced tools for intuitive user experience.
This software was developed based on customer demands for highly convenient functions that match their observation goals.
Supporting Non-Hamamatsu WSI format images
Supports file formats beyond the native Hamamatsu images (ndpi extension). It enables viewing of images from other scanner manufacturers, including svs, scn, mrxs, czi, and vsi image formats.
*The loading of all image data is not guaranteed.

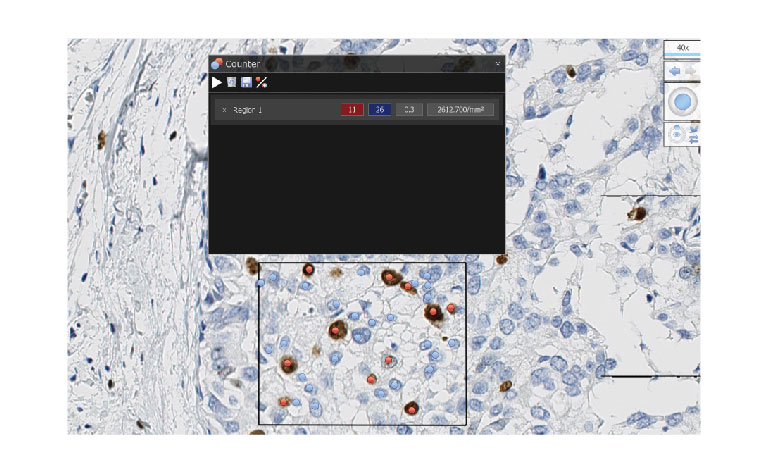

Counting by mouse clicking
Enables users to count objects within a specified annotation. The results can be saved as CSV files.

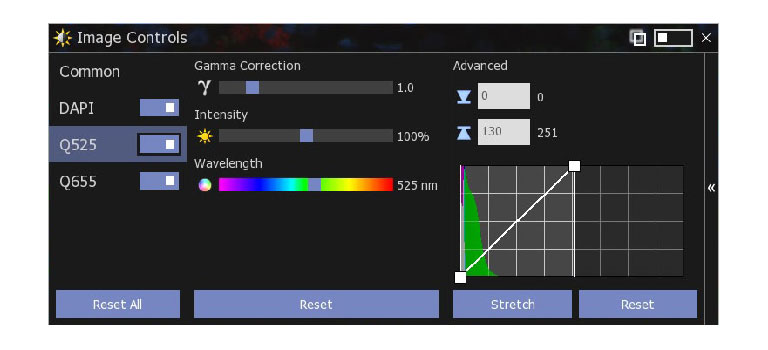

LUT control
Allows for the control of the Look Up Tables (LUT) by easy adjustment of the import and export light intensity and control of the histogram and line profile.
Comparison of functions
| NDP.view2 U12388-01 | NDP.view2 Plus U12388-02 | ||
|---|---|---|---|
| Basic operations | Zoom in and out | 〇 | 〇 |
| Digital zoom (8×) | 〇 | 〇 | |
| Scrolling | 〇 | 〇 | |
| Image rotation | 〇 | 〇 | |
| Image export | 〇 | 〇 | |
Effective functions for slide observation |
Image control | 〇 | 〇 |
| Thumbnails | 〇 | 〇 | |
| Multi View | 〇 | 〇 | |
| Annotation | 〇 | 〇 | |
| Stepless zoom | 〇 | 〇 | |
Functions necessary for specific observation and analysis |
Supporting Non-Hamamatsu WSI format images | ー | 〇 |
| Counting by mouse clicking | ー | 〇 | |
| Track map export | ー |
〇 | |
| Report export | ー | 〇 | |
| Review | ー | 〇 | |
| Case view | ー | 〇 | |
| TMA code record | ー | 〇 | |
| Magnifier | ー | 〇 | |
| Grid overlay | ー | 〇 | |
Effective functions for fluorescent image observation (for NanoZoomer S60) |
Color selection for fluo | 〇 | 〇 |
| Line profile、histogram | ー | 〇 | |
| LUT control | ー | 〇 | |
Important Notice
In the USA, C13220-01MD NanoZoomerⓇ S360MD Slide scanner system can be used for primary diagnosis in the following validated FDA-cleared displays:
・JVC JD-C240BN01A *The display is FDA cleared for use with the NanoZoomer S360MD.
・BARCO MDPC-8127 *The display itself is FDA cleared.
In Europe, following products are regulatory compliant for IVDR (EU), UKCA (UK) and IvDO (CH) for in vitro diagnostic use:
C13220-21MDEU NanoZoomer S360MD Slide scanner system, C16600-21MDEU NanoZoomer S60v2MD Slide scanner system and C16300-21MDEU NanoZoomer S20MD Slide scanner system.
In China, following products are registered for in vitro diagnostic use:
C13220-01 NanoZoomer S360, C13239-01 NanoZoomer S210, C13210-01 NanoZoomer S60 and C13140-01 NanoZoomer-SQ.
In Canada, C13220-31 NanoZoomer S360 has Medical Device License.
In Taiwan, C13220-01 NanoZoomer S360 is registered as medical device.
In Korea, C13220-61MDK NanoZoomer S360MD Slide scanner system is registered as in vitro diagnostic medical device.
In Japan, C13220-11MDJ NanoZoomer S360MD Slide scanner system and C16300-11MDJ NanoZoomer S20MD Slide scanner system are approved as medical devices.
For other countries, NanoZoomer series are for research use only and not permitted to use for clinical diagnostic purpose.
